Oписание продукта

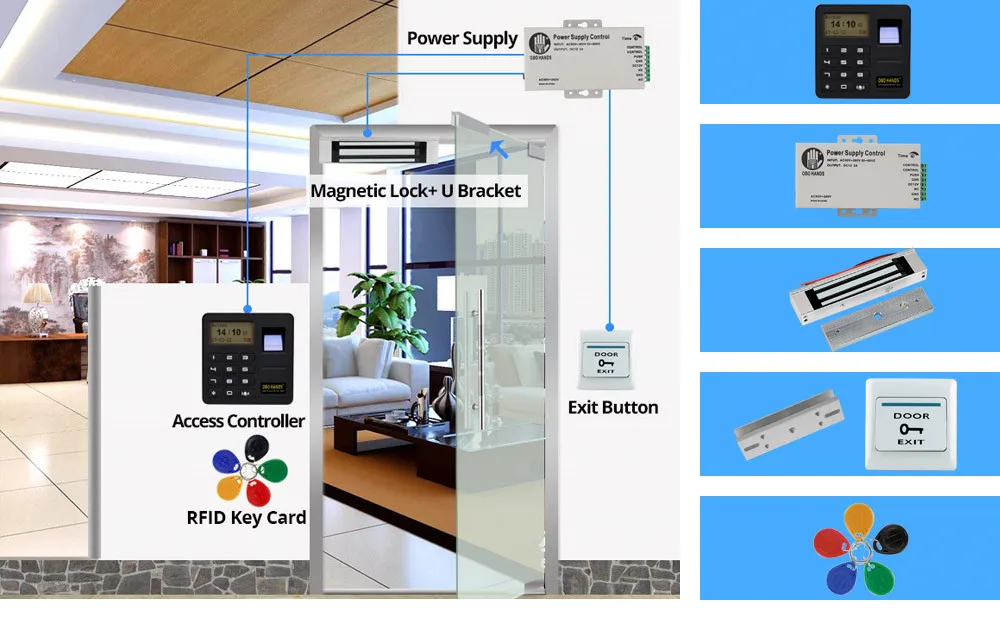

A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don\'t know how to choose, please contact us after taking a photo of the door, thank you.

Product Description

Fingerprint Access Controller

Fingerprint count: 500
Card count: 500
Pass mode: fingerprint/card/code,
fingerprint&card,fingerprint&code
Dimension: 86X86X26mm( L/W/H )
Fingerprint identification time: <1.5S
False reject rate: <0.01%
False accept rate: <0.0001%
1

Power Supply

AC Input Voltage:AC100V-AC22V50HZ
Output Voltage:DC12V
Momentary Current:5A
Persistent Current:3.5A
Operating Temperature:﹣20℃~﹢60℃
Operating Humidity:≦90%
Time:0~30S
Remote control function:Yes
Dimension: 138X67X37mm( L/W/H )
3A_5A--(__07

Door Exit Button

Material: Hard Plastic
Maximum Power Rating: 36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:  85X85MM ( L / W  )

RFID Keyfobs

125KHz rfid frequency key card, waterproof
Operating frequency: 125kHz
Detection range: 1-10cm
Each card pre programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID keyfobs for optional
(blue, red, yellow, green, black). We will send blue by default.
If you need other color, please leave message to us.

Package List

Kit1:suitable for wooden door, convenient and beautiful.

Working Voltage: 12VDC
Current: 450mA       200mA
Unlock mode: Lock when power on,unlock when power off
Dimension: 150X28X32mm( L/W/H )
1

Kit2:suitable for wooden and metal door, not need bracket,convenient to install.

Working voltage: 12/24V
Time Delay: 0s, 3s, 6s (Adjustable)
Locking mode: Magnetic induction
Dimension: 150X34X28 (L/W/H)
2

Kit3:suitable for wooden,metal and glass door, not need bracket, convenient to install.

Material: Aluminium Alloy
Working Voltage: DC12V
Working Current: 380-500mA
Holding Force:180KG/350lbs
Dimension:172X40X20mm( L/W/H ) 130X32X11mm( L/W/H )
3

kit4:suitable for wooden, metal and glass door,need L bracket, convenient to install.

Size:  L Bracket: 170* 34 * 25mm (L/W/H)
4


Kit5:suitable for glass door, need U bracket,convenient to install.

U bracket Size: 130*26*33mm (L/W/H)

5

Kit6:suitable for glass door,need 70mm door holder.

Electric Bolt Lock
Working voltage: 12VDC
Security type:  Electri power lock,unlock
Dimension:  200X33X45MM ( L / W / H ) Product Description
Locking mode:  Magnetic induction
6

Kit7:suitable for wooden and metal door,convenient and beautiful.

Size:                                  192Lx33Wx20H(mm)

Armature Plate Dimension:  139Lx32x11H(mm)
Holding Force:                     180kg(350Lbs)
Input Voltage:                     12VDC
Current:                              12V/120mA
7















Wiring Diagram



FR500-_51
